Quick Details
Material: 316L
Technics: Forged
Type: Threaded Cross
Place of Origin: Zhejiang, China (Mainland)
Model Number: F316L-Threaded-Cross-NPT-3/4-Inch-CL2000
Brand Name: Tanell
Rate: 2000#
Size: DN20 (3/4")
Ξ
Products
Credibility ,the lifeblood of enterprise!
PRODUCT SERIES
- Fittings
- Butt Welding Fittings
- Forged Fittings
- 180 Degree Elbows
- 90 Degree Elbows
- 60 Degree Elbows
- 45 Degree Elbows
- 30 Degree Elbows
- Equal Tee
- Reducing Tee
- Concentric Reducer
- Eccentric Reducer
- Lap Joint Stub End
- Outlets
- Cap
- Bend
- Cross
- Coupling
- Stainless Steel Lateral Tee
- Bellows Expansion Joints
- Flexible Metal Hose
- Non-Standard/Custom Fittings
- Bleed & Flushing Rings
- Types of Flanges
- Anchor Flanges
- Blind Flanges
- Expander Flanges
- High Hub Flanges
- Lap Joint Flanges
- Long Weld Neck Flanges
- Nipoflanges
- Orifice Flanges
- Plate Flanges
- Ring Type Joint Flanges
- Reducing Flanges
- Slip On Flanges
- Socket Weld Flanges
- Spectacle Blind Flanges
- Square Flanges
- Spades & Ring Spacers
- Threaded Flanges
- Welding Neck Flanges
Cross -
Tanell
ASME B16.11 ASTM A182 F316L Threaded Cross NPT 3/4 Inch CL2000
- FOB Price USD 1 - 1,900/Piece
- Port Ningbo or Shanghai Port
- MOQ 1 Piece
- Supply Ability 1000 Pieces Per Day
- Payment Terms L/C,T/T,Western Union,MoneyGram
- Packaging Seaworthy plywood cases or pallets
- Delivery 2 - 10 days
Detailed description
Packaging & Delivery
| Packaging Details: | Plywood case or fumigated woodern case or as per customers' requests. |
|---|---|
| Delivery Detail: | 2 - 10 days after receiving the deposit |
Specifications
Type: Threaded Cross
Material: 316L
Rate: 2000#
Size: DN20 (3/4")
A Threaded Cross makes 90° branch from the main run of pipe.
China Threaded Cross Manufacturer Tanell supplies ASME B16.11 ASTM A182 F316L Threaded Cross, NPT, 3/4 Inch, CL2000.
Composition ranges for 316L grade of stainless steels
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316 | Min | - | - | - | 0 | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316L | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316H | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 2.00 | 10.0 | - |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | - |

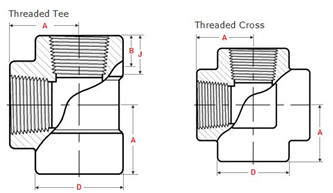

Dimensions - NPS 1/2 to 4 - Class 2000
| NPS | Min Length of Thread | Outside Dia of Band D | Center to End A | Min WT | |
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1¼ | 17 | 18 | 56 | 44 | 3.89 |
| 1½ | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2½ | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
| NPS | B | J | Outside Dia of Band D | Center to End A | Min WT |
Dimensions are in millimeters unless otherwise indicated.
Dimension B is minimum length of perfect thread.
The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.
