Flat Bar -
Tanell

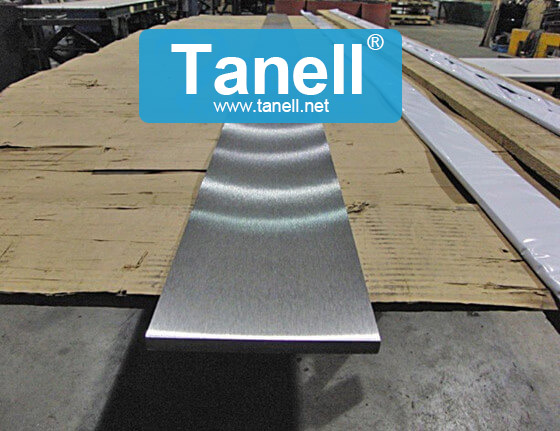

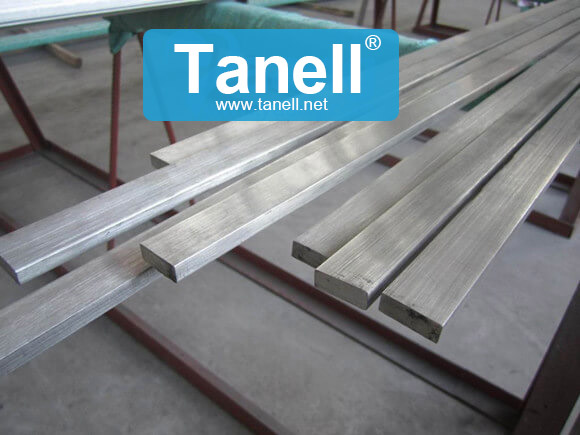

316 Stainless Steel Flat Bar
- FOB Price USD 5,00- 30,000/Piece
- Port Ningbo or Shanghai Port
- MOQ 1 Piece/Ton
- Supply Ability 1000 Tons Per Month
- Payment Terms L/C,T/T,Western Union,MoneyGram
- Packaging Seaworthy plywood cases or pallets
- Delivery 7- 20 days
Detailed description
Quick Details
| Standard: | ASTM, AISI, etc | Dimensions: | 10mm~500mm | Grade: | 300 Series |
| Place of Origin: | Zhejiang, China (Mainland) | Brand Name: | Tanell | Special Use: | Valve Steels |
| Type: | Flat Bar | Application: | Industry, construction, etc | Shape: | Square |
| Width: | 10mm~500mm | Length: | 2m, 6m, 5.8m, or be required | Thickness: | <div class="ellipsis" title=">2mm~100mm |
Packaging & Delivery
| Packaging Details: | Standard export seaworthy package or as required. |
| Delivery Detail: | 7- 20 days or according to the order quantity or be required |
Specifications
316 Stainless Steel Flat Bar
Standards: AISI, ASTM, DIN, EN, GB and JIS; etc
Materials(Grade):
300series: 301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347,etc
200series:201,202,202cu, 204;
400series:409,409L,410,420,430,431,440;
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7 ph,904L,etc
Size: 2 x 8mm – 30 x 180mm
Length: 2m-6m, or can be customized. 12m Max.
Surface Finish: Polished, Bright, Hairline, Grinded, Sandblast, Pickled, Mill Finish.
Production procedure: Raw elements (C, Fe, Ni, Mn, Cr and Cu), smelted ingots by AOD finery,
hot rolled into black surface, pickling into acid liquid, polished by automatically machine and cutting into pieces
Chemistry Data For 316/316L Stainless Steel Flat Bar
316 Stainless Steel | |||||||
Carbon (C) | Manganese (Mn) | Silicon (Si) | Chromium (Cr) | Nickel (Ni) | Phosphorus (P) | Sulfur (S) | Other |
0.08 | 2.0 | 1.0 | 16.0-18.5 | 10.0-14.0 | 0.035 | 0.03 | - |
316L Stainless Steel | |||||||
Carbon (C) | Manganese (Mn) | Silicon (Si) | Chromium (Cr) | Nickel (Ni) | Phosphorus (P) | Sulfur (S) | Other |
0.03 | 2.0 | 1.0 | 18.0-20.0 | 8.0-10.5 | 0.045 | 0.03 | - |
(a) Iron constitutes the remainder. Amounts indicated are maximums or ranges, unless indicated.
Mechanical Data for 316/316L Stainless Steel
Stainless Steel Type | Minimum Tensile Strength (ksi) | Minimum Yield Strength (0.2%, ksi) | Hardnessb |
316 Stainless Steel - Typical Valuesc | 75 | 30 | 88 |
316L Stainless Steel - Typical Valuesc | 70 | 25 | 88 |
Applications:
Construction fields and ships building industries;
Petroleum, chemical industries, war and electricity industries;
Food processing and medical industries;
Construction fields and ships building industries;
Petroleum, chemical industries, war and electricity industries;
Food processing and medical industries;
Boiler heat exchangers, machinery and hardware fields.
