ASME B16.5 ASTM A182 F53 LWNRF Flange 1 Inch CL300

Quick Details

• Size: 1"

• Material: 2507 (UNS S32750/F53), etc

• Place of Origin: Zhejiang, China (Mainland)

• Brand Name: Tanell

• Standard or Nonstandard: Standard

• Technics: Forged

• Connection: Welding

• Shape: Round

• Standard: ANSI, ASME, etc

• Type: F53 LWN Flange

Packaging & Delivery

Packaging Details:	Seaworthy plywood case or as customer requests
Delivery Detail:	2 - 10 days after receiving the deposit

Specifications

ASME B16.5 ASTM A182 F53 LWNRF Flange 1 Inch CL300
1. Material: 2507 (UNS S32750/F53), etc
2. Size: 1 Inch
3. Standard: ANSI, ASME, etc

4. Pressure: 300#

F53 LWN Flange is used for high pressure situations, LWN Flanges are used and for very high pressure cases Long Welding Neck flanges are preferred. In this case, the weld are far from the ring to avoid bending stresses and weld stress being combined.

China Flange Manufacturer Tanell supplies ASME B16.5 ASTM A182 F53 LWNRF Flange, 1 Inch, CL300.

Chemical Composition Of F53 UNS 32750 GR2507 Super Duplex Stainless Steel

GRADE	C≤	Mn≤	Si≤	S≤	P≤	Cr≤	Ni	Mo	Cu≤	N
S32750 （2507） 00Cr25Ni7Mo4N	0.03	1.20	0.8	0.020	0.035	24.0/26.0	6.0/8.0	3.0/5.0	0.50	0.24/0.32

Type	F53 LWNRF Flange
Size	1 Inch
Standards	WNRF, SO, WN, SW, TH, LJ, BL, PL, LWNRF, etc
Material	Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, 46, 52, 56, 60, 65, 70 Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 Duplex Stainless Steel: F51, 2205, F53, 2507, etc
Surface treatment	Chamfering
Applications	Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc

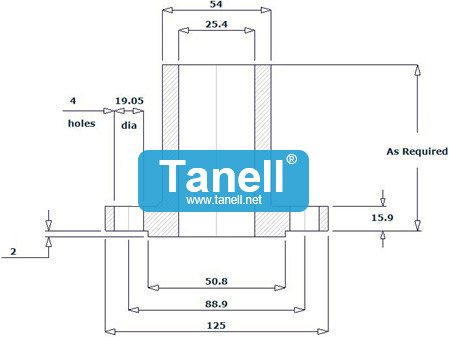

Long Weld Neck Flange Dimensions Class 300

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	RF Dia.	RF Height	PCD	Hub Length	No of Bolts	Bolt Size UNC	Machine Bolt Length	RF Stud Length	Hole Size	ISO Stud Size
		A	B	C	D	E	F	G	H
1/2	15	95	12.7	38	21.3	34.9	2	66.7	As Required	4	1/2	55	65	5/8	M14
3/4	20	115	14.3	48	26.7	42.9	2	82.6	As Required	4	5/8	65	75	3/4	M16
1	25	125	15.9	54	33.4	50.8	2	88.9	As Required	4	5/8	65	75	3/4	M16
1 1/4	32	135	17.5	64	42.2	63.5	2	98.4	As Required	4	5/8	70	85	3/4	M16
1 1/2	40	155	19.1	70	48.3	73	2	114.3	As Required	4	3/4	75	90	7/8	M20
2	50	165	20.7	84	60.3	92.1	2	127	As Required	8	5/8	75	90	3/4	M16
2 1/2	65	190	23.9	100	73	104.8	2	149.2	As Required	8	3/4	85	100	7/8	M20
3	80	210	27	117	88.9	127	2	168.3	As Required	8	3/4	90	110	7/8	M20
3 1/2	90	230	28.6	133	101.6	139.7	2	184.2	As Required	8	3/4	95	110	7/8	M20
4	100	255	30.2	146	114.3	157.2	2	200	As Required	8	3/4	95	115	7/8	M20
5	125	280	33.4	178	141.3	185.7	2	235	As Required	8	3/4	110	120	7/8	M20
6	150	320	35	206	168.3	215.9	2	269.9	As Required	12	3/4	110	120	7/8	M20
8	200	380	39.7	260	219.1	269.9	2	330.2	As Required	12	7/8	120	140	1	M24
10	250	445	46.1	321	273	323.8	2	387.4	As Required	16	1	140	160	1 1/8	M27
12	300	520	49.3	375	323.8	381	2	450.8	As Required	16	1 1/8	145	170	1 1/4	M30
14	350	585	52.4	425	355.6	412.8	2	514.4	As Required	20	1 1/8	160	180	1 1/4	M30
16	400	650	55.6	483	406.4	469.9	2	571.5	As Required	20	1 1/4	165	190	1 3/8	M33
18	450	710	58.8	533	457	533.4	2	628.6	As Required	24	1 1/4	170	195	1 3/8	M33
20	500	775	62	587	508	584.2	2	685.8	As Required	24	1 1/4	185	205	1 3/8	M33
24	600	915	68.3	702	610	692.2	2	812.8	As Required	24	1 1/2	205	230	1 5/8	M39

APPLICATIONS Of F53 LWNRF Flange:

1. Petrochemical industry

2. Pharmaceutical industry

3. Food industry

4. Aviation and aerospace industry

5. Architectural decoration industry

6. Oil and gas industry

Other Features:

1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce flange with special specifications according to customers’ requirements;

You can visit this website: tanell.net（Zhejiang Tanell Pipes&Fitting Co., Ltd）

If any inquiry about products, please feel free to contact us tan@tanell.com
