ASME B16.5 A182 304 SORF Flange 3 Inch CL150

Quick Details

• Size: 3"  (DN80)

• Material: 304, etc

• Place of Origin: Zhejiang, China (Mainland)

• Brand Name: Tanell

• Standard or Nonstandard: Standard

• Technics: Forged

• Connection: Welding

• Shape: Round

• Standard: ASME B16.5

• Type: 304 SORF Flange

Packaging & Delivery

Packaging Details:	Seaworthy plywood case or as customer requests
Delivery Detail:	2 - 10 days after receiving the deposit

Specifications

ASME B16.5 A182 304 SORF Flange

1. Material: 304
2. Size: 3"  (DN80)
3. Standard: ASME B16.5

4. Pressure: 150#

China Flange Manufacturer Tanell offers ASME B16.5 A182 304 SORF Flange, 3 Inch, CL150.

Composition ranges for 304L grade stainless steel

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
304	min. max.	- 0.08	- 2.0	- 0.75	- 0.045	- 0.030	18.0 20.0	-	8.0 10.5	- 0.10
304L	min. max.	- 0.030	- 2.0	- 0.75	- 0.045	- 0.030	18.0 20.0	-	8.0 12.0	- 0.10
304H	min. max.	0.04 0.10	- 2.0	- 0.75	-0.045	- 0.030	18.0 20.0	-	8.0 10.5	-

Mechanical properties of 304L grade stainless steel

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
304	515	205	40	92	201
304L	485	170	40	92	201
304H	515	205	40	92	201
304H also has a requirement for a grain size of ASTM No 7 or coarser.

Physical properties of 304L grade stainless steel in the annealed condition

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (μm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Electrical Resistivity (nΩ.m)
			0-100°C	0-315°C	0-538°C	at 100°C	at 500°C
304/L/H	8000	193	17.2	17.8	18.4	16.2	21.5	500	720

Grade specifications for 304L grade stainless steel

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
		BS	En	No	Name
304	S30400	304S31	58E	1.4301	X5CrNi18-10	2332	SUS 304
304L	S30403	304S11	-	1.4306	X2CrNi19-11	2352	SUS 304L
304H	S30409	304S51	-	1.4948	X6CrNi18-11	-	-
These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted.

Type	SORF Flange
Size	1/2" to 120"
Standards	SO, WN, SW, TH, LJ, BL, PL, etc
Material	Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, 46, 52, 56, 60, 65, 70 Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 Duplex Stainless Steel: F51, 2205, F53, 2507, etc
Sealing surface	FF, RF, LJ, FM, R.T.J, R.J and so on
Applications	Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc

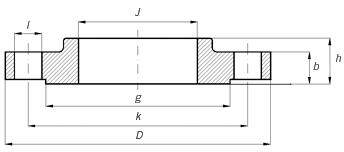

Flange Dimensions & Approximate Masses

ANSI, ASME, ASA, B16.5 150lb/sq.in. SLIP ON FLANGE RF / FF
ø	D	b	g	m	J	h	k	Holes	l	Kg.
1/2"	88,9	11,1	34,9	30,2	22,3	15,9	60,3	4	15,9	0,400
3/4"	98,4	12,7	42,9	38,1	27,7	15,9	69,8	4	15,9	0,700
1"	107,9	14,3	50,8	49,2	34,5	17,5	79,4	4	15,9	0,800
1 1/4"	117,5	15,9	63,5	58,8	43,2	20,6	88,9	4	15,9	1,100
1 1/2"	127,0	17,5	73,0	65,1	49,5	22,2	98,4	4	15,9	1,400
2"	152,4	19,0	92,1	77,8	62,0	25,4	120,6	4	19,0	2,200
2 1/2"	177,8	22,2	104,8	90,5	74,7	28,6	139,7	4	19,0	3,600
3"	190,5	23,8	127,0	107,9	90,7	30,2	152,4	4	19,0	4,100
3 1/2"	215,9	23,8	139,7	122,2	103,4	31,7	177,8	8	19,0	5,200
4"	228,6	23,8	157,2	134,9	116,1	33,3	190,5	8	19,0	5,600
5"	254,0	23,8	185,7	163,6	143,8	36,5	215,9	8	22,2	6,300
6"	279,4	25,4	215,9	192,1	170,7	39,7	241,3	8	22,2	7,500
8"	342,9	28,6	269,9	246,1	221,5	44,4	298,4	8	22,2	12,600
10"	406,4	30,2	323,8	304,8	276,3	49,2	361,9	12	25,4	18,500
12"	482,6	31,7	381,0	365,1	327,1	55,6	431,8	12	25,5	28,000
14"	533,4	34,9	412,7	400,0	359,1	57,1	476,2	12	28,6	36,000
16"	596,9	36,5	469,9	457,2	410,5	63,5	539,7	16	28,6	46,000
18"	635,0	39,7	533,4	504,8	461,8	68,3	577,8	16	31,7	50,000
20"	698,5	42,9	584,2	558,8	513,1	73,0	635,0	20	31,7	64,000
22"	749,3	46,0	641,2	609,6	564,4	79,4	692,1	20	34,9	72,000
24"	812,8	47,6	692,1	663,6	615,9	82,5	749,3	20	34,9	89,000

NOTE: 1. Class 150 flanges except Lap Joint will be furnished with 0.06 (1.6mm) raised face, which is included in ‘Thickness’ (C) and ‘Length through Hub’ (Y1), (Y3). 2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees. 3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub. 4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C). 5. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer’s option.

APPLICATIONS Of ANSI B16.5 B16.5 A182 304L SORF Flange:

1. petrochemical industry

2. Pharmaceutical industry

3. Food industry

4. Aviation and aerospace industry

5. Architectural decoration industry

6. Oil and gas industry

Other Features:

1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce flange with special specifications according to customers’ requirements;

Slip on flanges are slipped over the pipe and welded (usually both inside and outside) to provide strength and prevent leakage. Slip on Flanges are at the low cost end of the scale, and do not require high accuracy when cutting the pipe to length. These slip on can sometimes have a boss or hub, and can be made with a bore to suit either pipe or tube.

Where can we find the high quality ASME B16.5 A182 304 SORF Flange 3 Inch CL150.
