Tanell

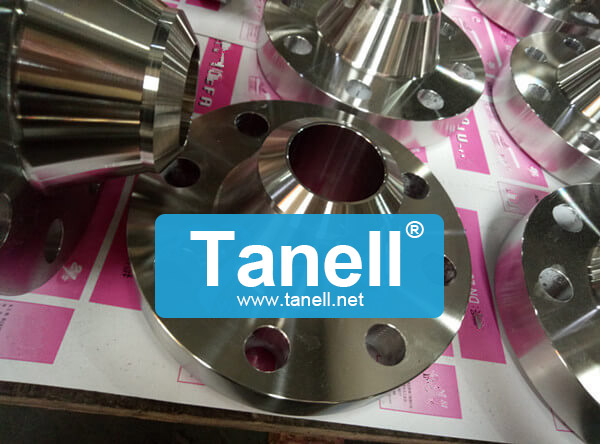

ASME B16.5 ASTM B564 Incoloy 825 WNRTJ Flange 3 Inch SCH40S CL900
- FOB Price USD 1 - 1,900/Piece
- Port Ningbo or Shanghai Port
- MOQ 1 Piece
- Supply Ability 1000 Pieces Per Day
- Payment Terms L/C,T/T,Western Union,MoneyGram
- Packaging Seaworthy plywood cases or pallets
- Delivery 2 - 10 days
Detailed description
Quick Details
| Material: | UNS NO8825 (Incoloy 825) | Technics: | Forged | Type: | WNRTJ Flange |
| Place of Origin: | Zhejiang, China (Mainland) | Head Code: | Round | Brand Name: | Tanell |
| Connection: | Welding | Shape: | Equal |
Packaging & Delivery
| Packaging Details: | Plywood case or fumigation woodern case |
|---|---|
| Delivery Detail: | 2 - 10 days |
Specifications
ASME B16.5 ASTM B564 Incoloy 825 WNRTJ Flange 3 Inch SCH40S CL900
1) Size: 3" (DN80)
THK: Sch40S
3) Material: UNS NO8825 (Incoloy 825)
China Flange Manufacturer Tanell supplies ASME B16.5 ASTM B564 Incoloy 825 WNRTJ Flange 3 Inch SCH40S CL900.
Incoloy Alloy 825 (UNS N08825) Chemical Composition, %
| Ni | Fe | Cr | Mb | Cu | Ti | C | Mn | S | Si | Al |
|---|---|---|---|---|---|---|---|---|---|---|
| 38.0-46.0 | 22.0 min | 19.5-23.5 | 2.5-3.5 | 1.5-3.0 | .6-1.2 | 0.05 max | 1.0 max | 0.03 max | 0.5 max | 0.2 max |
|
Class 900 WN RTJ Flange Dimensions
Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore A B C D E F G H I J K L 1/2 15 120 22.3 38 21.3 60 60.5 6.35 82.6 39.67 6.35 8.74 Refer Note: Welding Neck bore is derived from the pipe schedule 3/4 20 130 25.4 44 26.7 70 66.5 6.35 88.9 44.45 6.35 8.74 1 25 150 28.6 52 33.4 73 71.5 6.35 101.6 50.8 6.35 8.74 1 1/4 32 160 28.6 64 42.2 73 81 6.35 111.1 60.33 6.35 8.74 1 1/2 40 180 31.8 70 48.3 83 92 6.35 123.8 68.27 6.35 8.74 2 50 215 38.1 105 60.3 102 124 7.92 165.1 95.25 7.92 11.91 2 1/2 65 245 41.3 124 73 105 137 7.92 190.5 107.95 7.92 11.91 3 80 240 38.1 127 88.9 102 156 7.92 190.5 123.83 7.92 11.91 4 100 290 44.5 159 114.3 114 181 7.92 235 149.23 7.92 11.91 5 125 350 50.8 190 141.3 127 216 7.92 279.4 180.98 7.92 11.91 6 150 380 55.6 235 168.3 140 241 7.92 317.5 211.12 7.92 11.91 8 200 470 63.5 298 219.1 162 308 7.92 393.7 269.88 7.92 11.91 10 250 545 69.9 368 273 184 362 7.92 469.9 323.85 7.92 11.91 12 300 610 79.4 419 323.8 200 419 7.92 533.4 381 7.92 11.91 14 350 640 85.8 451 355.6 213 467 11.13 558.8 419.1 11.13 16.66 16 400 705 88.9 508 406.4 216 524 11.13 616 469.9 11.13 16.66 18 450 785 101.6 565 457 229 594 12.7 685.8 533.4 12.7 19.84 20 500 855 108 622 508 248 648 12.7 749.3 584.2 12.7 19.84 24 600 1040 139.7 749 610 292 772 15.88 901.7 692.15 15.88 26.97
| Size in Inch | Size in mm | Outer Dia. | Flange Thickness | Hub OD | Weld Neck OD | Welding Neck Length | RTJ RF Dia | RTJ RF Height | PCD | RTJ Pitch dia | RTJ Depth | RTJ Width | Bore |
| A | B | C | D | E | F | G | H | I | J | K | L | ||
| 1/2 | 15 | 120 | 22.3 | 38 | 21.3 | 60 | 60.5 | 6.35 | 82.6 | 39.67 | 6.35 | 8.74 | Refer Note: Welding Neck bore is derived from the pipe schedule |
| 3/4 | 20 | 130 | 25.4 | 44 | 26.7 | 70 | 66.5 | 6.35 | 88.9 | 44.45 | 6.35 | 8.74 | |
| 1 | 25 | 150 | 28.6 | 52 | 33.4 | 73 | 71.5 | 6.35 | 101.6 | 50.8 | 6.35 | 8.74 | |
| 1 1/4 | 32 | 160 | 28.6 | 64 | 42.2 | 73 | 81 | 6.35 | 111.1 | 60.33 | 6.35 | 8.74 | |
| 1 1/2 | 40 | 180 | 31.8 | 70 | 48.3 | 83 | 92 | 6.35 | 123.8 | 68.27 | 6.35 | 8.74 | |
| 2 | 50 | 215 | 38.1 | 105 | 60.3 | 102 | 124 | 7.92 | 165.1 | 95.25 | 7.92 | 11.91 | |
| 2 1/2 | 65 | 245 | 41.3 | 124 | 73 | 105 | 137 | 7.92 | 190.5 | 107.95 | 7.92 | 11.91 | |
| 3 | 80 | 240 | 38.1 | 127 | 88.9 | 102 | 156 | 7.92 | 190.5 | 123.83 | 7.92 | 11.91 | |
| 4 | 100 | 290 | 44.5 | 159 | 114.3 | 114 | 181 | 7.92 | 235 | 149.23 | 7.92 | 11.91 | |
| 5 | 125 | 350 | 50.8 | 190 | 141.3 | 127 | 216 | 7.92 | 279.4 | 180.98 | 7.92 | 11.91 | |
| 6 | 150 | 380 | 55.6 | 235 | 168.3 | 140 | 241 | 7.92 | 317.5 | 211.12 | 7.92 | 11.91 | |
| 8 | 200 | 470 | 63.5 | 298 | 219.1 | 162 | 308 | 7.92 | 393.7 | 269.88 | 7.92 | 11.91 | |
| 10 | 250 | 545 | 69.9 | 368 | 273 | 184 | 362 | 7.92 | 469.9 | 323.85 | 7.92 | 11.91 | |
| 12 | 300 | 610 | 79.4 | 419 | 323.8 | 200 | 419 | 7.92 | 533.4 | 381 | 7.92 | 11.91 | |
| 14 | 350 | 640 | 85.8 | 451 | 355.6 | 213 | 467 | 11.13 | 558.8 | 419.1 | 11.13 | 16.66 | |
| 16 | 400 | 705 | 88.9 | 508 | 406.4 | 216 | 524 | 11.13 | 616 | 469.9 | 11.13 | 16.66 | |
| 18 | 450 | 785 | 101.6 | 565 | 457 | 229 | 594 | 12.7 | 685.8 | 533.4 | 12.7 | 19.84 | |
| 20 | 500 | 855 | 108 | 622 | 508 | 248 | 648 | 12.7 | 749.3 | 584.2 | 12.7 | 19.84 | |
| 24 | 600 | 1040 | 139.7 | 749 | 610 | 292 | 772 | 15.88 | 901.7 | 692.15 | 15.88 | 26.97 |
APPLICATIONS:
1. Pipe and Tubes for petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
6. Gas and Oil
