ASTM A182 F53 Flushing Ring Type G 24 Inch

Quick Details

Material:	2507 (UNS 32750/F53), etc	Technics:	Forged	Type:	Flushing Ring Type G
Place of Origin:	Zhejiang, China (Mainland)	Head Code:	Round	Brand Name:	Tanell
Connection:	Welding	Shape:	Equal

Packaging & Delivery

Packaging Details:	plywood case or fumigation woodern case
Delivery Detail:	2 - 10 days

Specifications

ASTM A182 F53 Flushing Ring Type G

1. Material: 2507 (UNS 32750/F53), etc

2. Size: 24" (DN600)

3. Standard: ASTM A182, etc

4. Pressure: 150#, 300#, 600#, etc

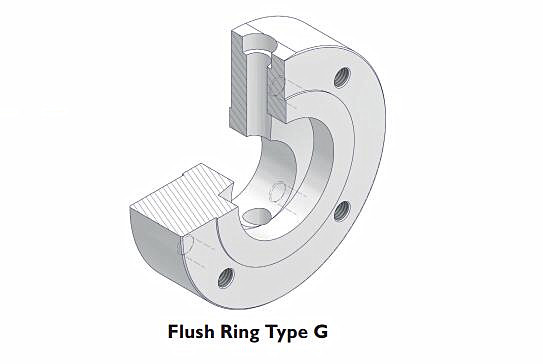

Flushing Ring Type G is used for flushing solution combined with diaphragm seals. This type of flushing ring is clamped between process nozzle and diaphragm seal. The flushing ring can be combined with the BF and BRF seal as well as the BC and BRC type.

Description Of ASTM A182 F53 Flushing Ring Type G

Type	Flushing Ring Type G
Size	24" (DN600)
Standards	ASTM, etc
Material	Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc Stainless Steel: ASTM A182 F304/304L/316/316L, etc Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc. Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800,                     Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc Cu-Ni: 90/10,70/30, etc
Haet treatment	Normalized / Annealed / Quenched / tempered
Applications	Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Chemical Composition Of 2507 (UNS 32750/F53)

GRADE	C≤	Mn≤	Si≤	S≤	P≤	Cr≤	Ni	Mo	Cu≤	N
S32750 （2507） 00Cr25Ni7Mo4N	0.03	1.20	0.8	0.020	0.035	24.0/26.0	6.0/8.0	3.0/5.0	0.50	0.24/0.32

Applications of F53 Flushing Ring Type G

• Flush rings are used for diaphragm seals in order to prevent clogging of the instrument connection.

• The fush ring is mounted between the process fange and the diaphragm seal.

Standard Features of F53 Flushing Ring Type G

• The fushing ports allow the washing out of particles accumulated in front of the membrane.

• The pressure chamber can be vented or drained or flled with a cleaning liquid and subsequently fushed, depending on the requirement.

• Various nominal widths and forms allow adaption to the respective process fange.

• Standard fushing connection: 1/2 NPT female

• Sealing face:

- Acc. to EN 1092-1 Form B1

- Acc. to ASME B 16.5 RF

• Materials: F53/316/316L/1.4401/1.4404,etc

ASTM A182 F53 Flushing Ring Type G's Packing & Shipping

1) Packing Method:

Normal packing: plastic film or bubble paper wrapped on product's surface ,protect ends with caps,

pack with wooden case or load on fumifation plywood pallet .

Custom made as customers request.

2) Shipping Way:

Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.

As per customer's request.
